A case for two communication circles
Clear communication is the key to success in the field. It is often important to not only have one communication channel, but to be involved in two communication channels at the same time. It is important to avoid crosstalk between the channels at all costs.

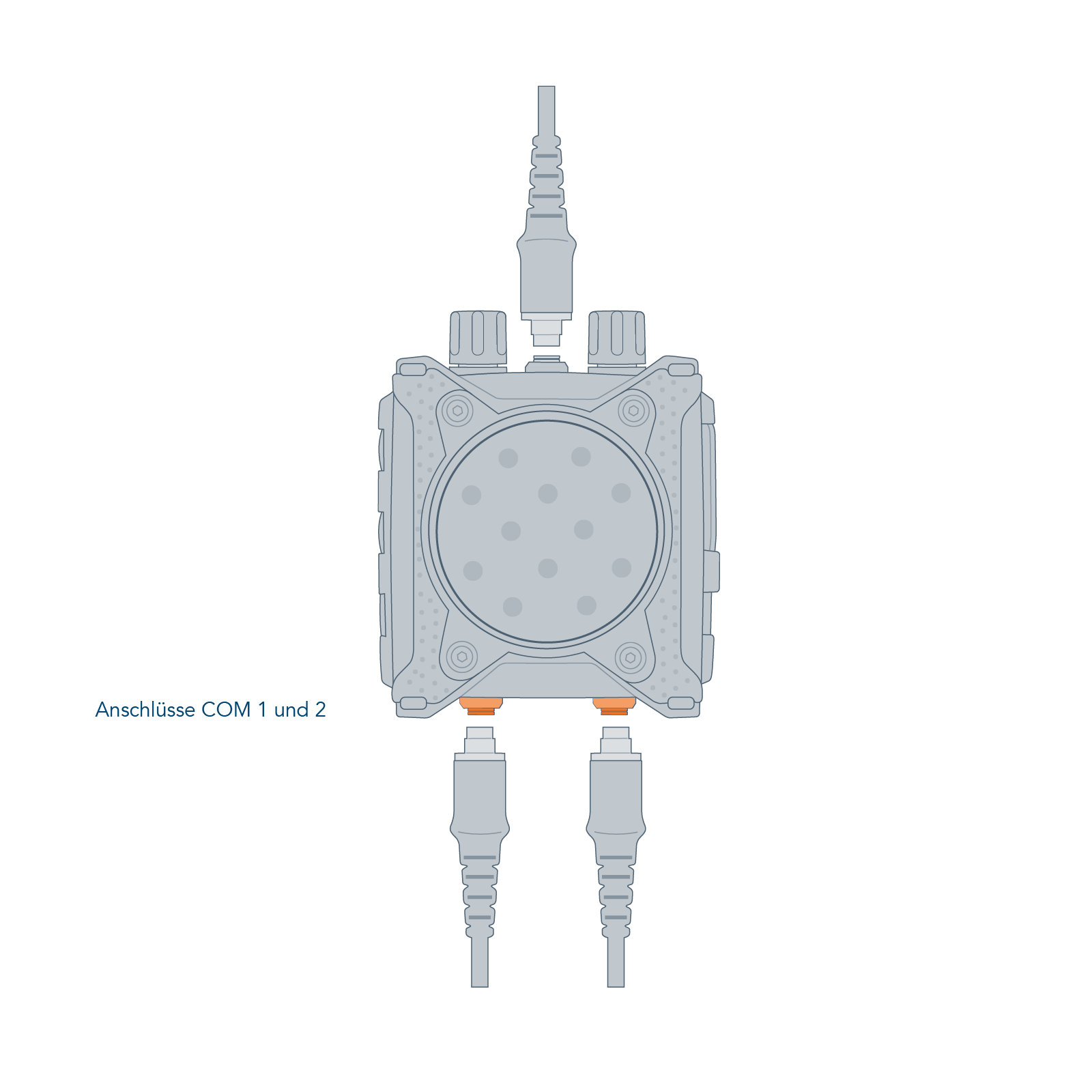

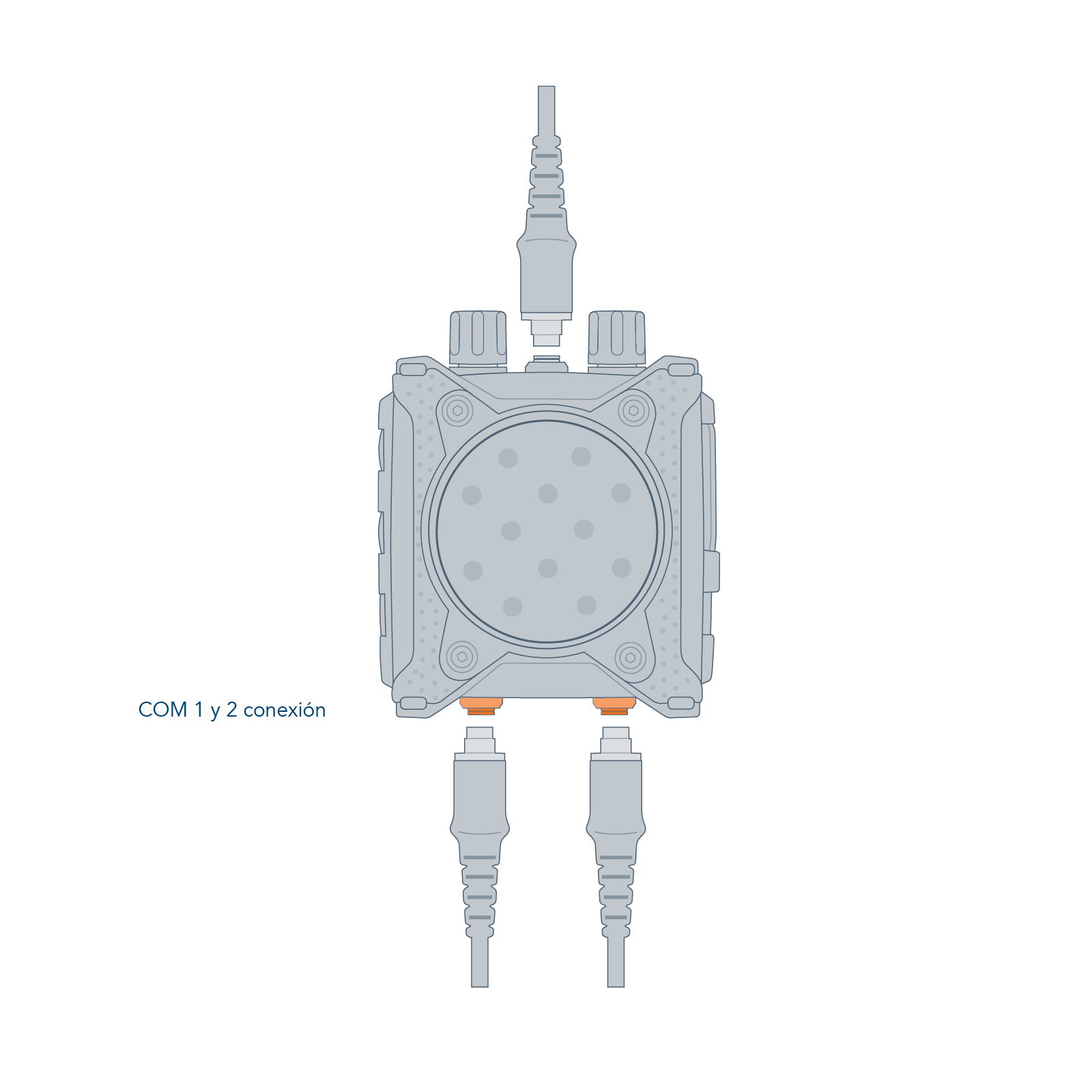

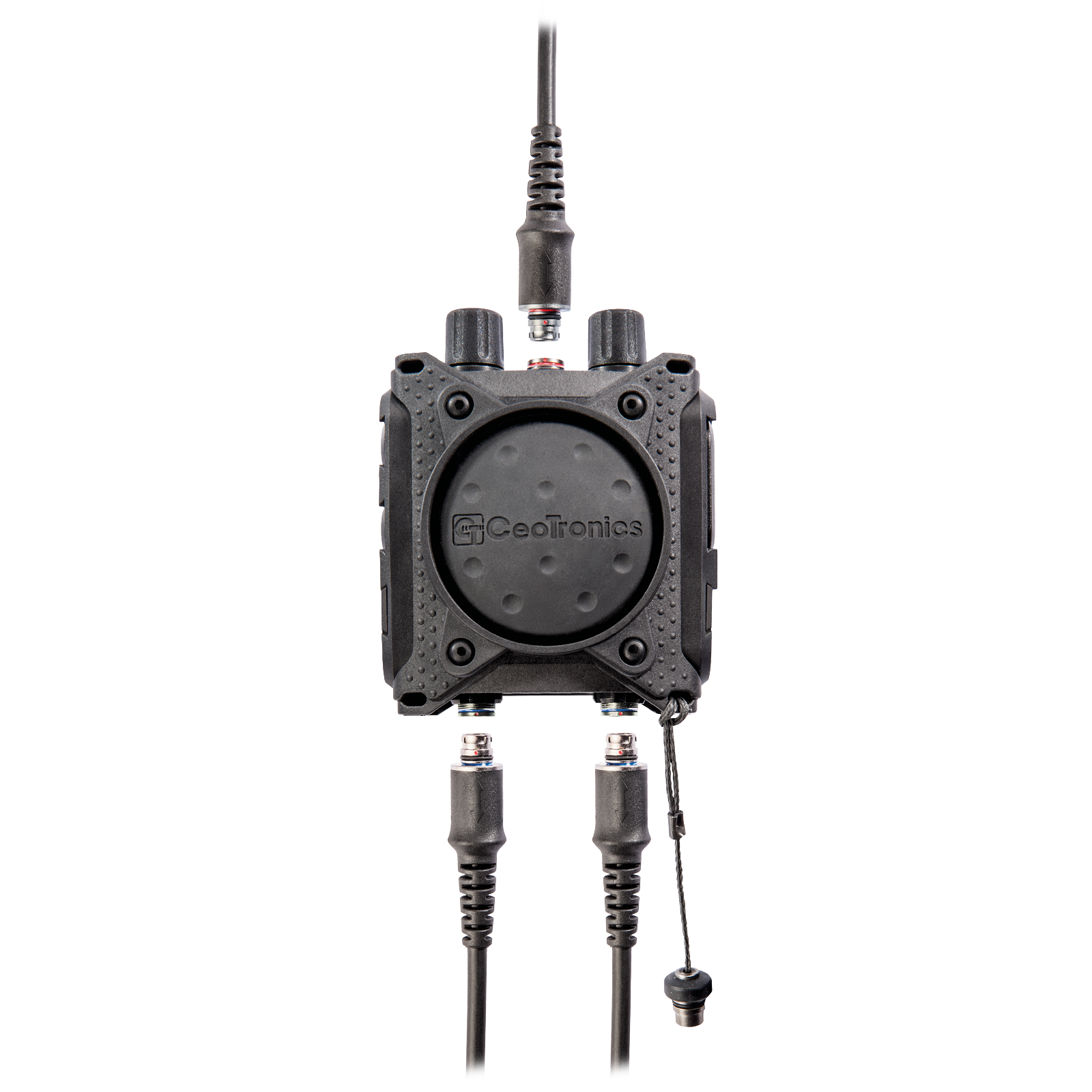

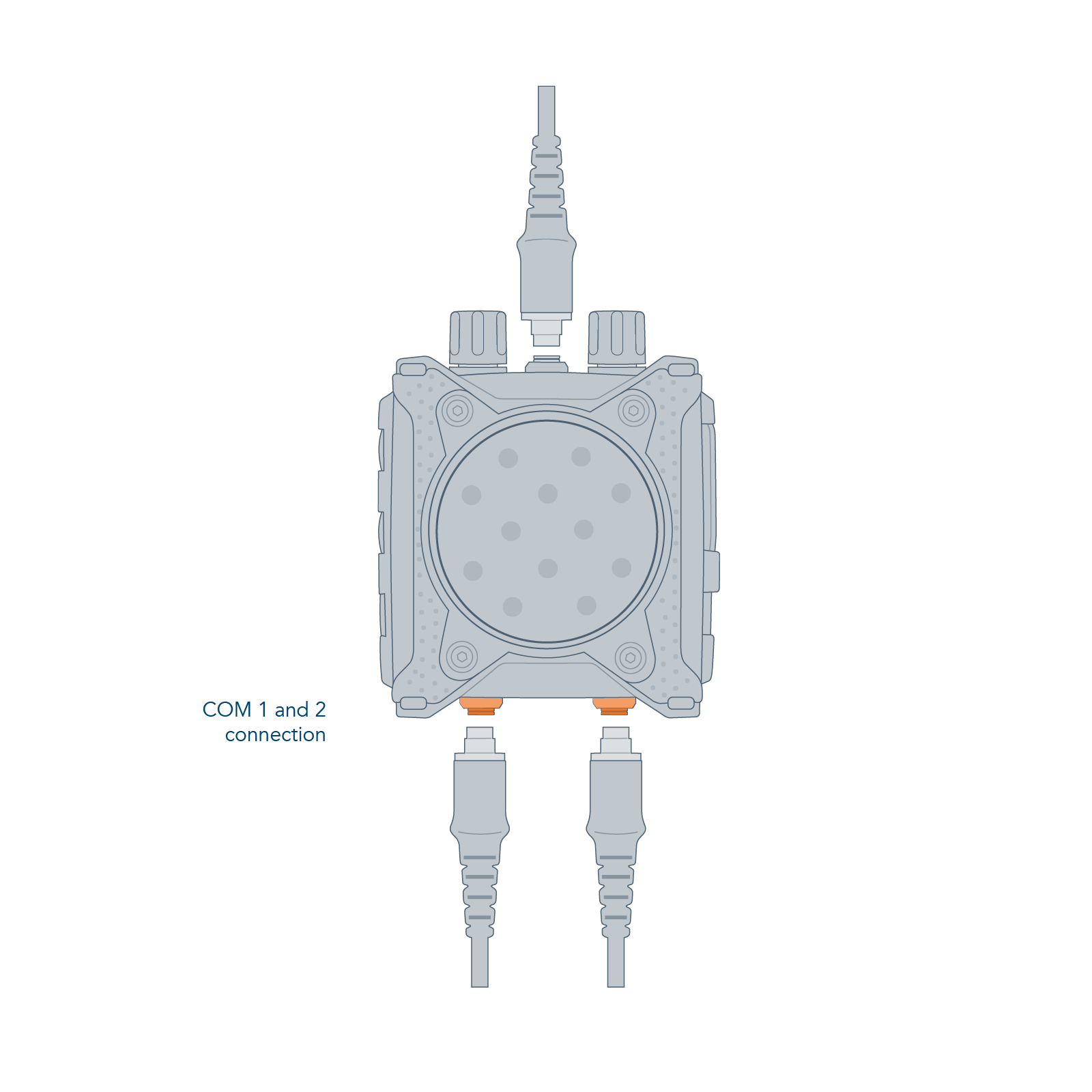

CEOTRONICS has developed its own control unit for precisely this requirement. The CT-MultiPTT 2C offers two wired communication circuits that can be used in parallel. Modern digital voice signal processing ensures that both channels are clearly separated from each other. CT-ComLink® technology also ensures maximum flexibility in the choice of connected devices with this control unit. You can find out more about the functions of the CT-MultiPTT 2C on this page. As a software-defined product, it can be individually adapted to different application scenarios. We will of course be happy to advise you personally.
Picture gallery
Advantages
Innovative communication technology

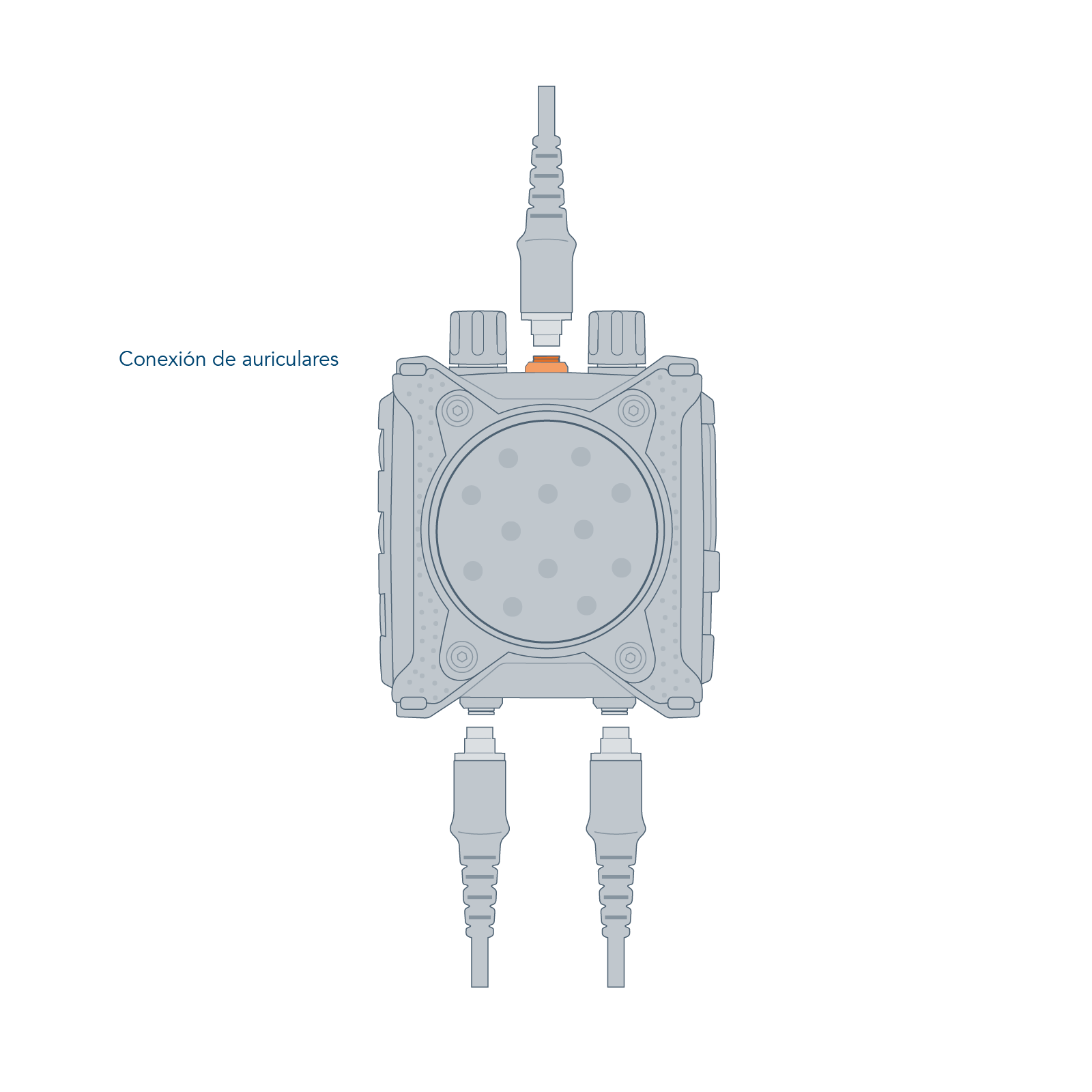

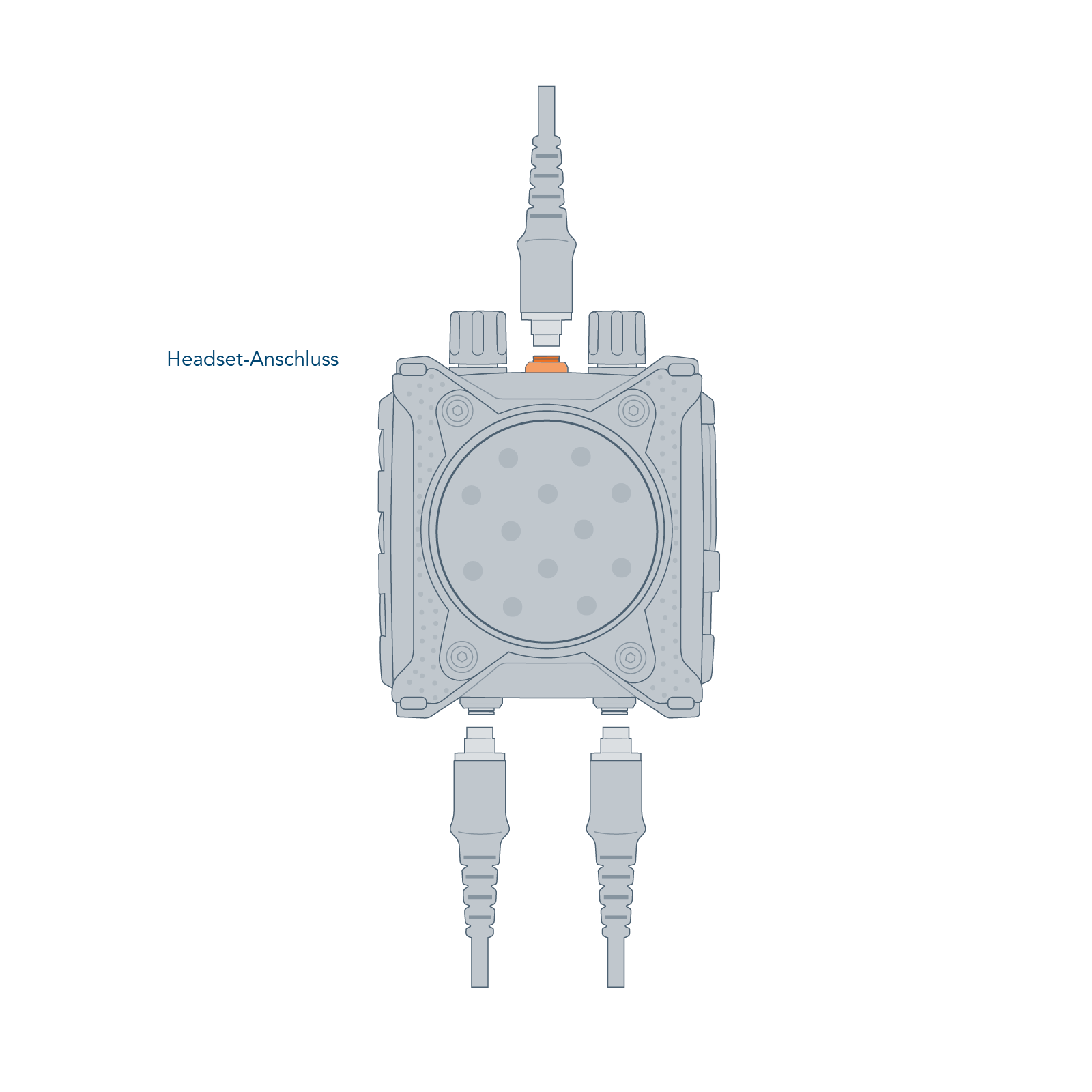

Whether headsets or other communication media: the CT-MultiPTT 2C automatically recognizes the connected devices thanks to CT-ComLink® identification and sets the optimum audio configuration for perfect voice transmission.
Energy supply
The CT-MultiPTT 2C is supplied with power via one or both connected radio devices. The very economical energy requirement ensures a long service life for the connected components.
Particularly robust
The CT-MultiPTT 2C is robust and can withstand even the most adverse environmental conditions. It is a software-defined product, i.e. the hardware remains unchanged in the long term as a permanent basis for continuously evolving software. The housing of this innovative control unit is made of impact-resistant, UV-resistant and non-reflective material and has been tested in accordance with MIL-STD-810H with regard to climate, shock, vibration and drop. The robust operating unit is waterproof and dustproof, and is classified to IP66 and IP67. It is also resistant to sweat and saliva, chemical substances and weak alkalis, oils, greases and passes the salt spray test.
Simple, direct and intuitive to use

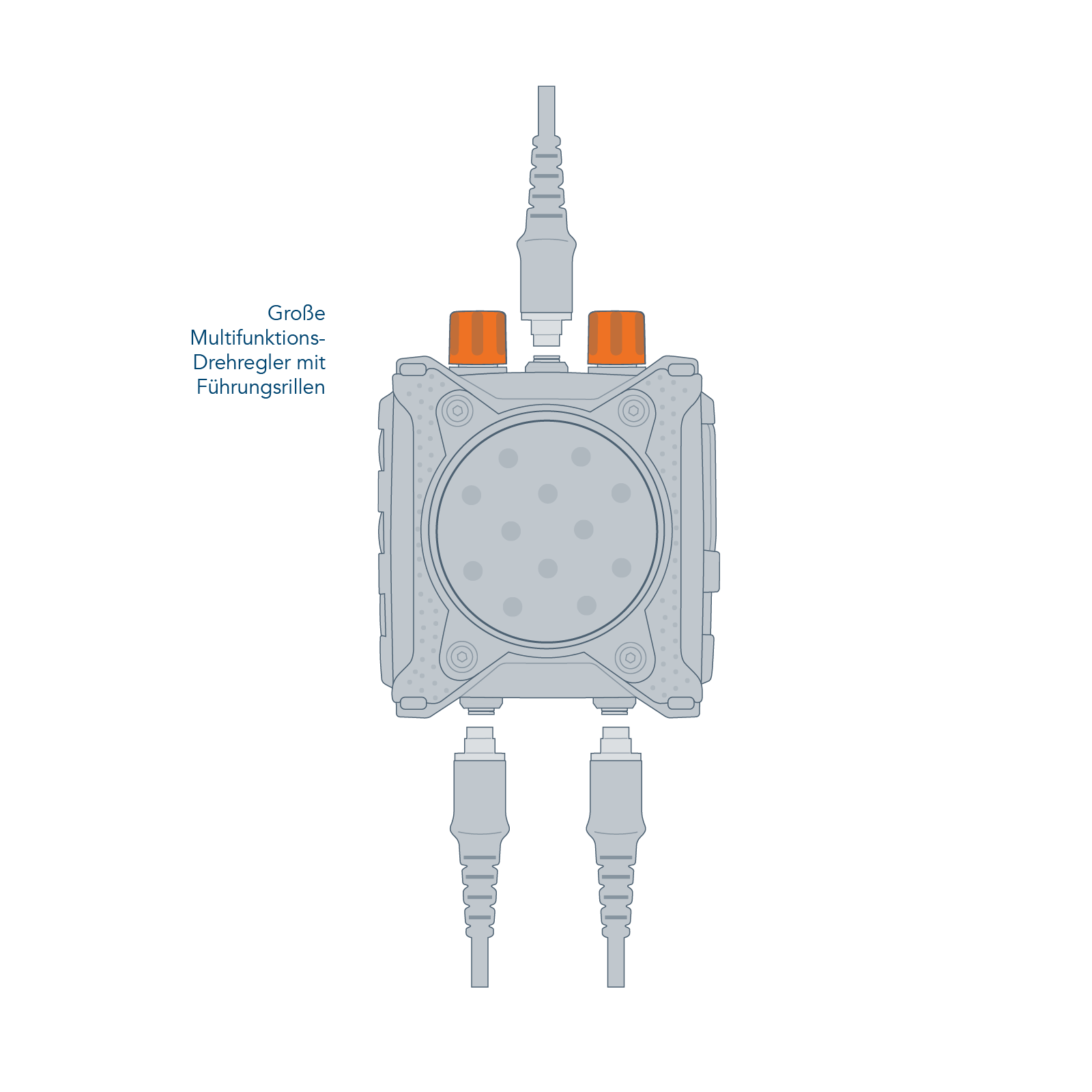

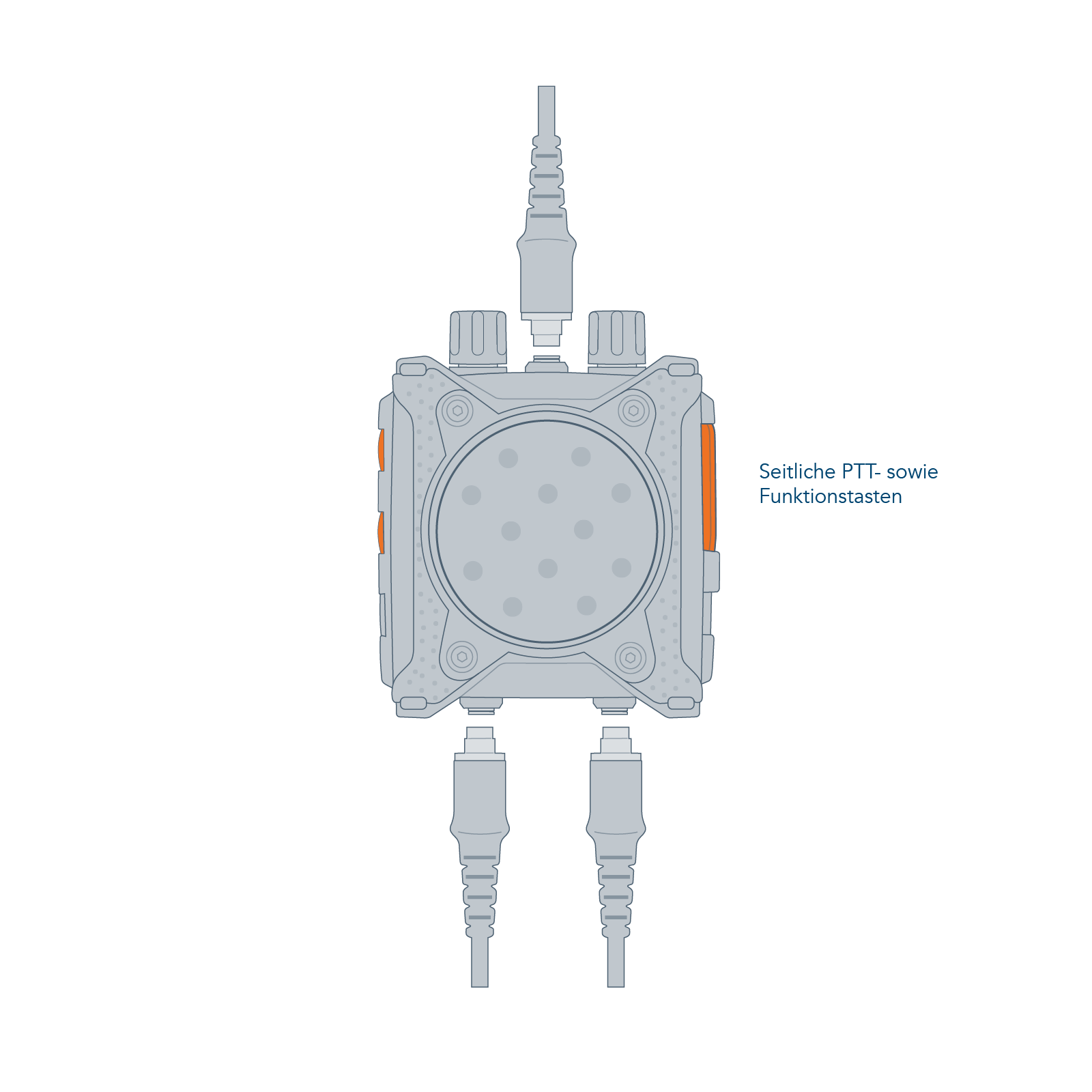

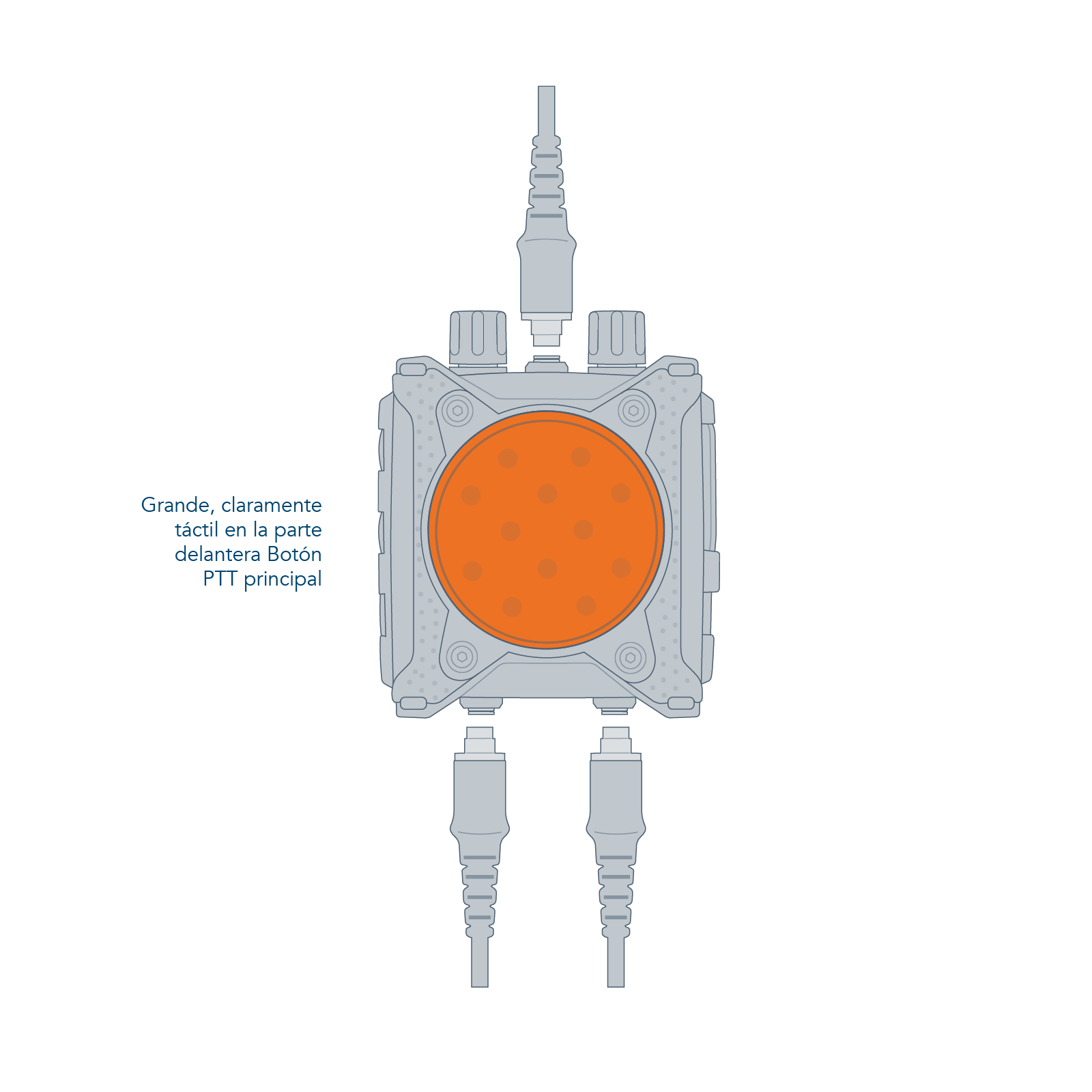

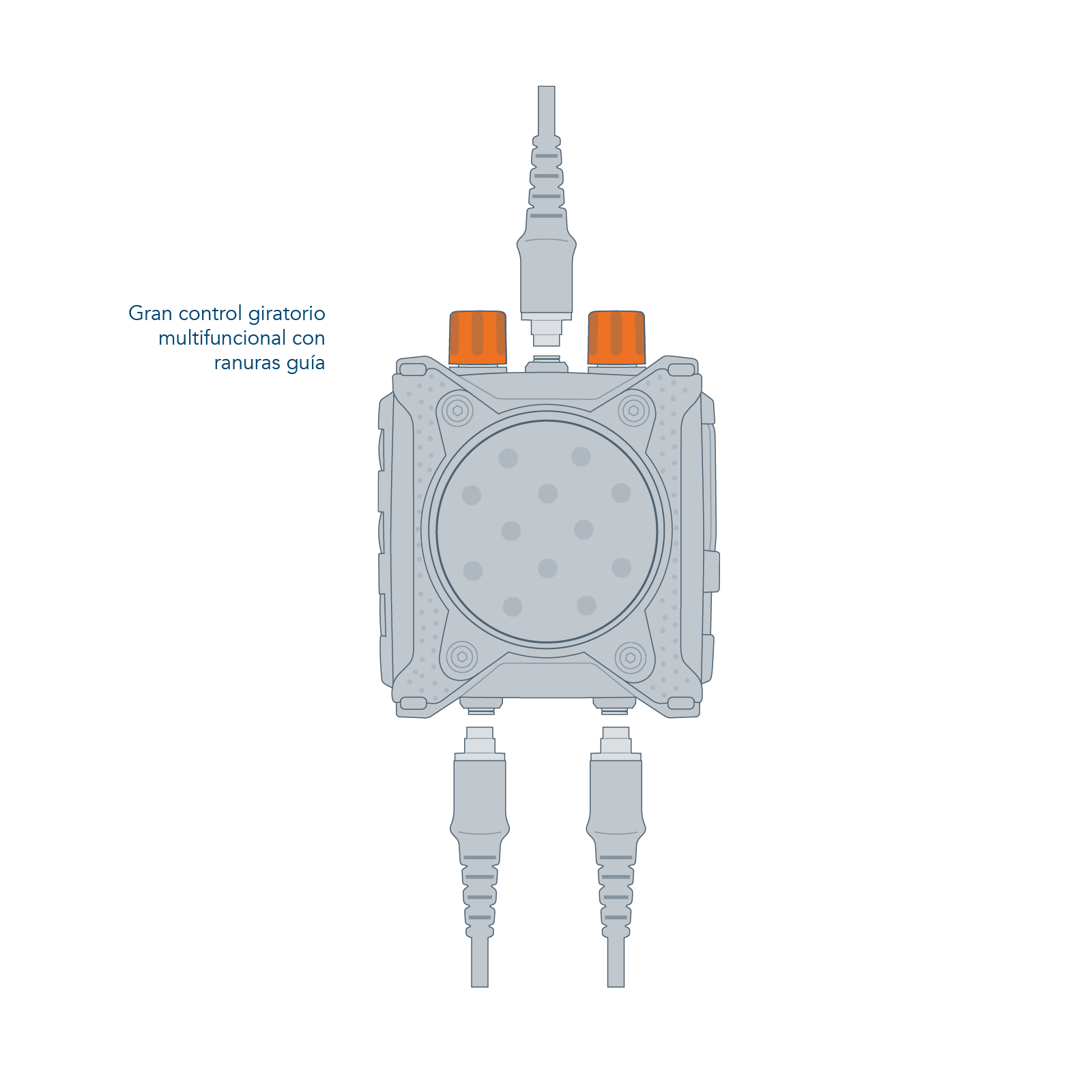

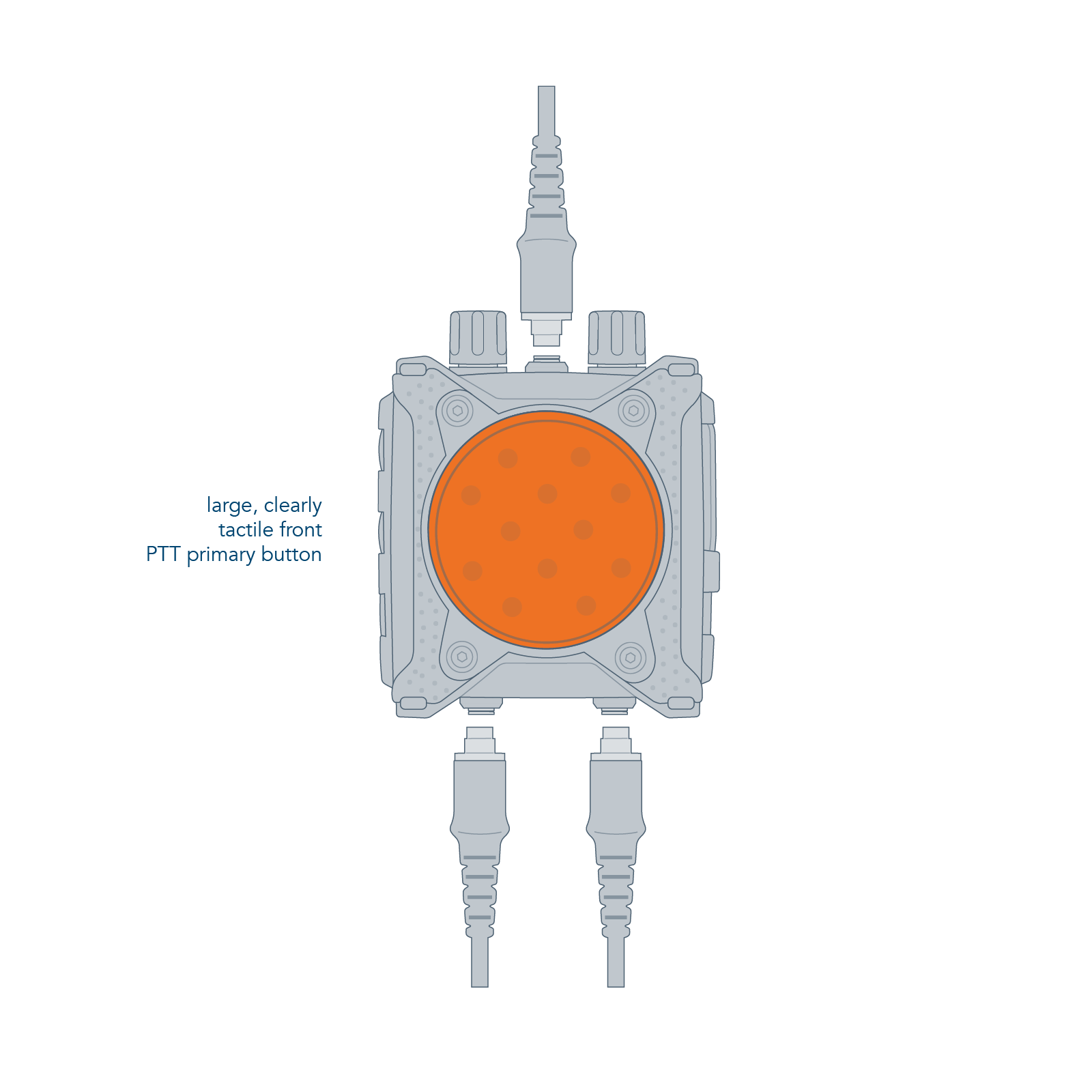

The CT-MultiPTT 2C has a large, clearly tactile front PTT. This makes it easy to operate even when wearing gloves. This ensures a high level of communication reliability, even in critical situations. The large multifunctional rotary controls can be gripped securely thanks to the guide grooves. Additional function buttons allow direct access to programmed additional functions of the connected radio devices. The CEOTRONICS voice menu with auditory feedback allows all basic settings or configuration changes to be made quickly, easily and intuitively: when navigating through the operating menu, the user of the CT-MultiPTT 2C receives feedback on the current setting as voice output. The extremely robust plug connections of this control unit are designed with break-away technology and automatically release for emergency unlocking from a defined tensile force. The CT-MultiPTT 2C can also be controlled remotely with the small, lightweight CT-WirelessPTT MIL.
